Strength Analysis Of Singly Reinforced Concrete Beams Pdf Strength A rectangular beam has the dimensions: b = 250 mm, h = 650 mm, and d = 600 mm and is reinforced with 3 no. 25 bars so that a s = 1530 mm2. the concrete cylinder strength f’ c is 28 mpa, and the tensile strength in bending (modulus of rupture) f r is 3.27 mpa. the yield point of the steel f y is 420 mpa. determine the stresses caused by. Analysis of reinforced concrete beams (2) free download as pdf file (.pdf), text file (.txt) or view presentation slides online. 1. the document discusses the basic assumptions in the flexural theory of reinforced concrete beams, including assumptions about strain distribution, concrete and steel stresses, and the behavior of the neutral axis.
Strengthening Reinforced Concrete Beams By Using Different 50 Off In calculating the ultimate moment capacity of a beam, the tensile strength of the concrete is neglected. the maximum usable concrete compressive strain at the extreme fiber is assumed equal to 0.003. the steel is assumed to be uniformly strained to the strain that exists at the level of the centroid of the steel. This example will demonstrate the analysis and design of the rectangular simply supported reinforced concrete beam shown below using aci 318 14 provisions. steps of the structural analysis, flexural design, shear design, and. Here is the bending stress equation for the tensile stress in the concrete at the bottom of the beam. why use itr? find the moment mcr that will cause the concrete to start cracking. then find the load, pcr, that will cause this moment. if you had steel yielding, try to locate this point on your graph of load vs deflection. To compute the strength of a member using the strength design method of the aci code requires that two basic conditions need be satisfied: (1) static equilibrium, and (2) compatibility of strains. strain distribution is assumed to be linear. a cross section which was plane before loading remains plane under load, (fig. 3).

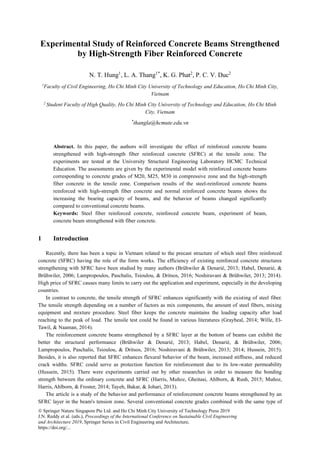

Experimental Study Of Reinforced Concrete Beams Strengthened By High Here is the bending stress equation for the tensile stress in the concrete at the bottom of the beam. why use itr? find the moment mcr that will cause the concrete to start cracking. then find the load, pcr, that will cause this moment. if you had steel yielding, try to locate this point on your graph of load vs deflection. To compute the strength of a member using the strength design method of the aci code requires that two basic conditions need be satisfied: (1) static equilibrium, and (2) compatibility of strains. strain distribution is assumed to be linear. a cross section which was plane before loading remains plane under load, (fig. 3). If, in a doubly reinforced beam, the tensile steel ratio ρ is equal to or less than ρb, the strength of the beam may be approximated within acceptable limits by disregarding the compression bars. if the tensile steel ratio ρ is larger than ρb, somewhat elaborate analysis is required. A structural reinforced concrete continuous beams at an intermediate building floor provides gravity load resistance for the applied dead and live loads. the continuous beam along grid 3 is selected to demonstrate the analysis and design of continuous t beams (structural. This paper presents the numerical study on retrofitted reinforced concrete beams subjected to combined bending and torsion using different ratios of twisting and bending moment. retrofitting is a method of reinforcing the primary component of pre existing structure against deterioration to enhance its imperviousness, and durability. Structural design standards for reinforced concrete are established by the building code and commentary (aci 318 11) published by the american concrete institute international, and uses strength design (also known as limit state design). concrete is a mixture of cement, coarse aggregate, fine aggregate, and water.
Pdf Behavior Of Reinforced Concrete Beams Loaded By Pdf If, in a doubly reinforced beam, the tensile steel ratio ρ is equal to or less than ρb, the strength of the beam may be approximated within acceptable limits by disregarding the compression bars. if the tensile steel ratio ρ is larger than ρb, somewhat elaborate analysis is required. A structural reinforced concrete continuous beams at an intermediate building floor provides gravity load resistance for the applied dead and live loads. the continuous beam along grid 3 is selected to demonstrate the analysis and design of continuous t beams (structural. This paper presents the numerical study on retrofitted reinforced concrete beams subjected to combined bending and torsion using different ratios of twisting and bending moment. retrofitting is a method of reinforcing the primary component of pre existing structure against deterioration to enhance its imperviousness, and durability. Structural design standards for reinforced concrete are established by the building code and commentary (aci 318 11) published by the american concrete institute international, and uses strength design (also known as limit state design). concrete is a mixture of cement, coarse aggregate, fine aggregate, and water.
