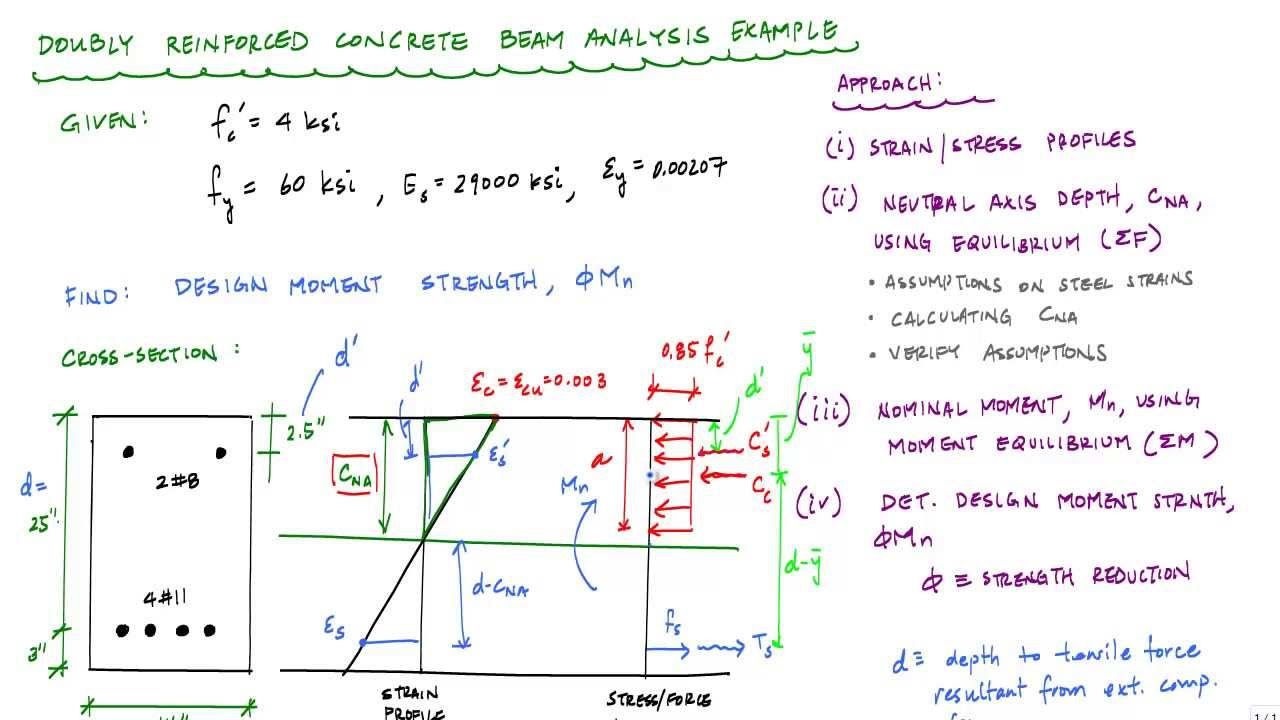

Design Moment Strength Of Doubly Rc Section Example 1 Vrogue Co This video is a detailed example problem showing how to calculate the design moment strength of a doubly reinforced concrete section. more. part 1: problem description,. Step 1: calculate the maximum moment or resisting moment (m n) that can be resisted by the under reinforced section with ρ =ρ max. the corresponding tensile steel area as= ρ max bd, compute (a) from equation 7, and calculate (d) using the following equation:.
Worked Example Design Of Doubly Reinforced Section To Ec2 Structural Analysis steps for doubly reinforced rectangular beams are summarized below: step (1) find the limiting value of depth of neutral axis (xu,max) by using the clause 38.1 of code is 456:2000. step (2) assuming fsc = fst = 0.87fy and considering force equilibrium, find xu; where, fcc = compressive stress in concrete at the level of compressive steel. This article presents a worked example on the design of doubly reinforced concrete beam to bs 8110. the image below shows the plan view of a reinforced concrete structure, use the data given below to design beam 2. design data: variable load on slab = 5kn m 2. finishes = 1.5kn m 2. unit weight of concrete = 24kn m 3. Doubly reinforced concrete beam design (aci 318 14) determine the required reinforcement steel area for a concrete beam carrying service dead and live loads. first, check if singly reinforced beam section is suitable. if not, try doubly reinforced concrete beam section by adding compression reinforcement. Doubly reinforced beams are reinforced concrete beams that incorporate both compression steel (in the compression zone) and tension steel (in the tension zone). this design is typically employed when the required moment capacity of a beam exceeds that which can be provided by singly reinforced beams (those with only tension steel).
Rc1 2015 16 Chapter Two Example On Analysis Of Double Reinforced Beam Doubly reinforced concrete beam design (aci 318 14) determine the required reinforcement steel area for a concrete beam carrying service dead and live loads. first, check if singly reinforced beam section is suitable. if not, try doubly reinforced concrete beam section by adding compression reinforcement. Doubly reinforced beams are reinforced concrete beams that incorporate both compression steel (in the compression zone) and tension steel (in the tension zone). this design is typically employed when the required moment capacity of a beam exceeds that which can be provided by singly reinforced beams (those with only tension steel). To increase the moment capacity of a beam beyond that of a singly reinforced beam with the minimum tensile strain of (0.004), it is necessary to introduce another resisting couple in the beam. this is done by adding steel in both the compression and tensile sides of the beam. A) a reinforced concrete beam has a rectangular section of breadth b = 225 mm and effective depth d = 450 mm. it has to carry a design moment of 300.0 knm. show that compression reinforcement will be required. fcu = 30 n mm 2, fy = 460 n mm 2. b) calculate the number of 16 mm diameter steel bars that will be required as compression reinforcements. In this case, reinforcing is added in the compression zone, resulting in a so called doubly reinforced beam, i.e., one with compression as well as tension reinforcement. compression reinforced is also used to improve serviceability, improve long term deflections, and to provide support for stirrups throughout the beam. This construction video shows the detailed processes for measuring the design moment strength concerning a doubly reinforced concrete section. the video is divided in two parts : part 1: problem description, strain stress profiles, locating neutral axis depth part 2: calculating nominal moment, strength reduction factor, design moment strength.
Ppt Doubly Reinforced Beams Strength Of Doubly Reinforced Beam To increase the moment capacity of a beam beyond that of a singly reinforced beam with the minimum tensile strain of (0.004), it is necessary to introduce another resisting couple in the beam. this is done by adding steel in both the compression and tensile sides of the beam. A) a reinforced concrete beam has a rectangular section of breadth b = 225 mm and effective depth d = 450 mm. it has to carry a design moment of 300.0 knm. show that compression reinforcement will be required. fcu = 30 n mm 2, fy = 460 n mm 2. b) calculate the number of 16 mm diameter steel bars that will be required as compression reinforcements. In this case, reinforcing is added in the compression zone, resulting in a so called doubly reinforced beam, i.e., one with compression as well as tension reinforcement. compression reinforced is also used to improve serviceability, improve long term deflections, and to provide support for stirrups throughout the beam. This construction video shows the detailed processes for measuring the design moment strength concerning a doubly reinforced concrete section. the video is divided in two parts : part 1: problem description, strain stress profiles, locating neutral axis depth part 2: calculating nominal moment, strength reduction factor, design moment strength.
