Lecture 2 Reinforced Concrete Design Of Rectangular Beam Download Tests of doubly reinforced concrete beams have shown that even if the compression concrete crushes, the beam may very well not collapse if the compression steel is enclosed by stirrups. Chapter one: design of doubly reinforced rectangular beam 3rd stage example lec. hasanain m. al musawi reinforced concrete design i page 5 1: design a rectangular beam, that must carry live load of 36 kn m and.
Solution Reinforced Concrete Design Of Doubly Reinforced Beam Studypool Solution this cantilever beam is subjected to a concentrated moment at the free end producing a constant positive moment (tension at bottom, compression at top) along the span. this simple configuration is ideal to illustrate the steps required for doubly reinforced beam design and match the reference design scenario. the first step in the solution. Arman, i.m. design of reinforced concrete structures a practical approach, 3rd edition, 2021. understanding the behaviour of concrete materials. to be familiar with the reinforced concrete design methods. understanding the behaviour of reinforced concrete sections under different types of failure. Concrete should be reinforced with steel to carry compression. these beam sections are designed to have both tension and compression steel reinforcement, resulting in a doubly reinforced. A doubly reinforced section may be “decomposed” into a singly reinforced section and a hypothetical section with only tension and compression steel reinforcements (but.

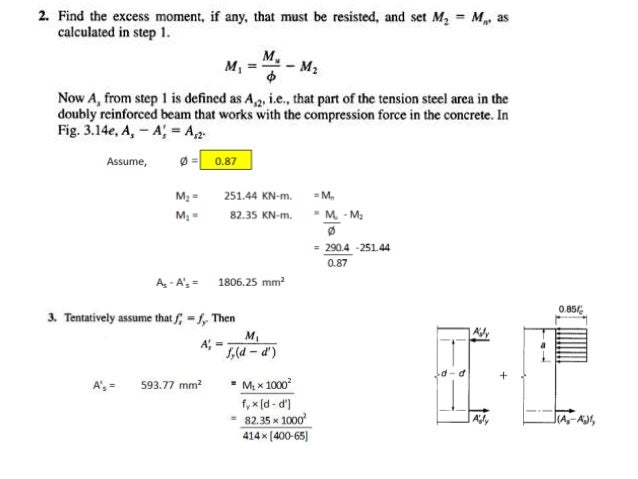

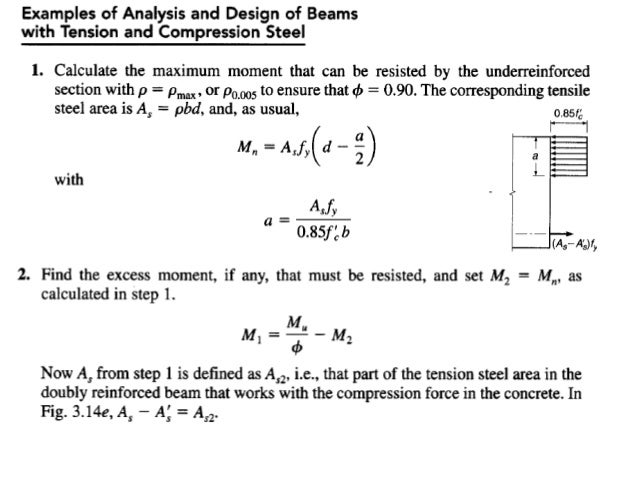

Lecture Notes Doubly Reinforced Beams Concrete should be reinforced with steel to carry compression. these beam sections are designed to have both tension and compression steel reinforcement, resulting in a doubly reinforced. A doubly reinforced section may be “decomposed” into a singly reinforced section and a hypothetical section with only tension and compression steel reinforcements (but. Such reinforced concrete sections having steel reinforcement both on tensile and compressive faces are known as doubly reinforced section. (i) some sections of a continuous beam with moving loads undergo change of sign of the bending moment which makes compression zone as tension zone or vice versa. To check if the beam should be designed as doubly reinforced beam: → if displaced concrete is neglected and compression steel yields. Analysis steps for doubly reinforced rectangular beams are summarized below: step(1) find the limiting value of depth of neutral axis (xu,max) by using the clause 38.1 of code is 456:2000. step(2) assuming fsc = fst = 0.87fy and considering force equilibrium, find xu;. 3.11 design of doubly reinforced concrete rectangular beam sections: in design problem, usually these properties are given: dead and live loads are given then find moment that must be resisted, m.
Concrete Lecture 2 Design Of Rectangular Singly Reinforced Beam Such reinforced concrete sections having steel reinforcement both on tensile and compressive faces are known as doubly reinforced section. (i) some sections of a continuous beam with moving loads undergo change of sign of the bending moment which makes compression zone as tension zone or vice versa. To check if the beam should be designed as doubly reinforced beam: → if displaced concrete is neglected and compression steel yields. Analysis steps for doubly reinforced rectangular beams are summarized below: step(1) find the limiting value of depth of neutral axis (xu,max) by using the clause 38.1 of code is 456:2000. step(2) assuming fsc = fst = 0.87fy and considering force equilibrium, find xu;. 3.11 design of doubly reinforced concrete rectangular beam sections: in design problem, usually these properties are given: dead and live loads are given then find moment that must be resisted, m.
Solution Reinforced Concrete Design Of Doubly Reinforced Beam Studypool Analysis steps for doubly reinforced rectangular beams are summarized below: step(1) find the limiting value of depth of neutral axis (xu,max) by using the clause 38.1 of code is 456:2000. step(2) assuming fsc = fst = 0.87fy and considering force equilibrium, find xu;. 3.11 design of doubly reinforced concrete rectangular beam sections: in design problem, usually these properties are given: dead and live loads are given then find moment that must be resisted, m.
