Chapter 3 Limit State Design Of Beams For Flexure Pdf Pdf When a flexural member is part of the primary lateral load resisting system, the positive reinforcement required to be extended into the support as described in (a) shall be anchored to develop its design stress in tension at the face of the support. This document discusses the design of reinforced concrete beams for flexure according to limit state design principles. it provides general data on concrete properties like characteristic compressive strength, tensile strength, modulus of elasticity.

Lecture 7 Theory Of Flexure Contd And Analysis Of T Beams And L Beams
Lecture 7 Theory Of Flexure Contd And Analysis Of T Beams And L Beams

Lecture 7 Theory Of Flexure Contd And Analysis Of T Beams And L Beams With further increase of additional plastic hinge, redistribution moments continue until a collapse mechanism is produced. plastic analysis can be applied in analysis of steel structures. however, its use for analysis of reinforced concrete structures is limited. Rccdesign ch3 limit state analysis of beams for flexure singly rcc t section and doubly rcc design. At the ultimate limit state it is important that member sections in flexure should be ductile and that failure should occur with the gradual yielding of the tension steel and not by a sudden catastrophic compression failure of the concrete. Safety at ultimate limit state in flexure n at the ultimate limit state due to the factored loads is called the factored moment mu. for the consideration of various combinations of loads (dead loads, live loads, wind loads, etc.), appropriate load factors should be applied to the sp fied ̳c u analysis. if ts ultimate mom.

3 1 Flexure Behaviour Of Rc Beams Lecture 3 Flexure Beam
3 1 Flexure Behaviour Of Rc Beams Lecture 3 Flexure Beam

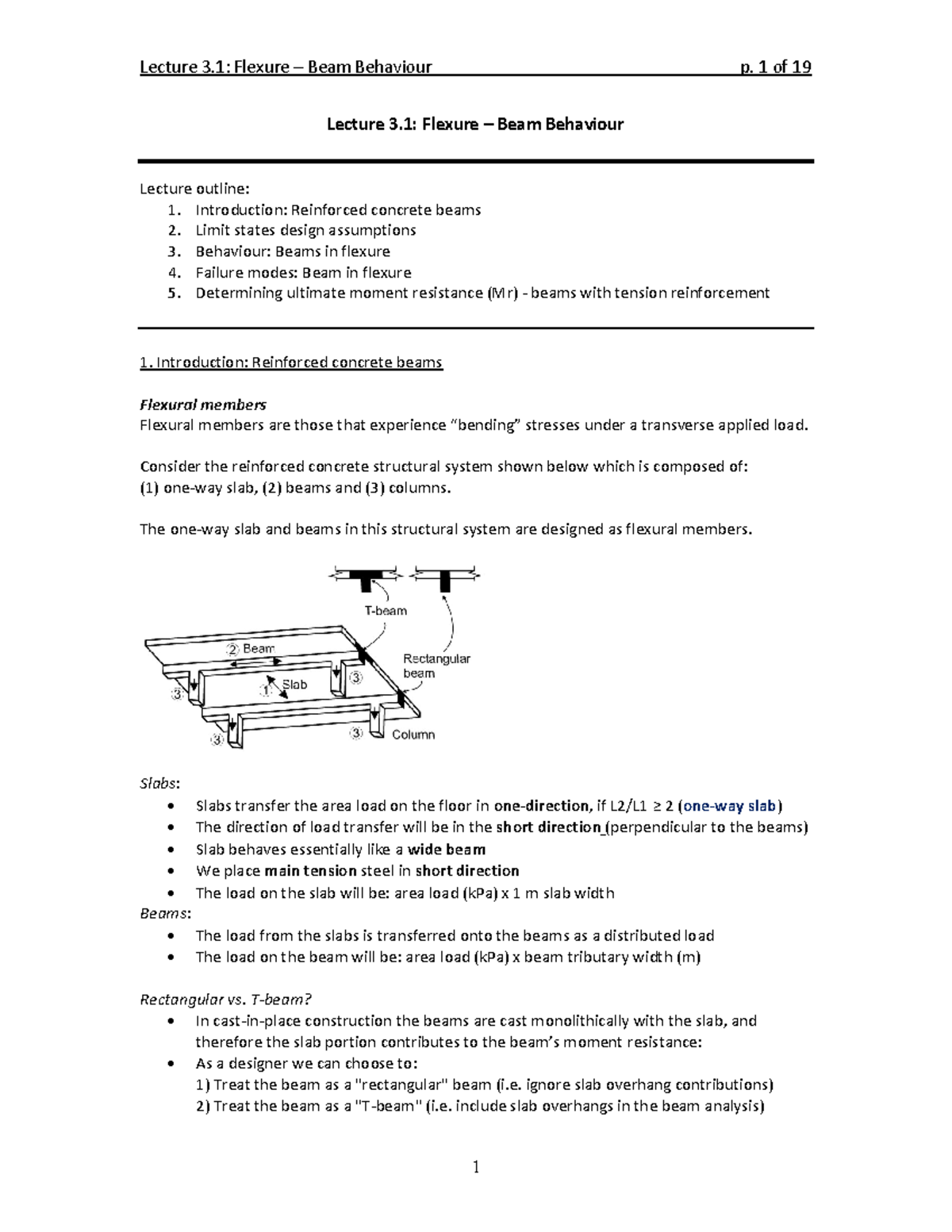

3 1 Flexure Behaviour Of Rc Beams Lecture 3 Flexure Beam At the ultimate limit state it is important that member sections in flexure should be ductile and that failure should occur with the gradual yielding of the tension steel and not by a sudden catastrophic compression failure of the concrete. Safety at ultimate limit state in flexure n at the ultimate limit state due to the factored loads is called the factored moment mu. for the consideration of various combinations of loads (dead loads, live loads, wind loads, etc.), appropriate load factors should be applied to the sp fied ̳c u analysis. if ts ultimate mom. If a beam cross section is limited because of architectural or other considerations, it may happen that the concrete cannot develop the compression force required to resist the given bending moment. Chapter 3 design of beam for flexure and shear free download as pdf file (.pdf), text file (.txt) or read online for free. this document discusses limit state design of reinforced concrete beams. Method of rcc design a reinforced concrete structure should be designed to satisfy the following criteria i) adequate safety, in items stiffness and durability iii) reasonable economy. the following design methods are used for the design of rcc structures. Solution: given: clear span = 6 m, wall thickness = 250 mm, live load = 9.8 kn m fck= 20 mpa, fy = 415 mpa the minimum depth of beam is based on limit state of serviceability requirements.

Lecture On Ch 3 Flexural Analysis And Design Of Beams
Lecture On Ch 3 Flexural Analysis And Design Of Beams

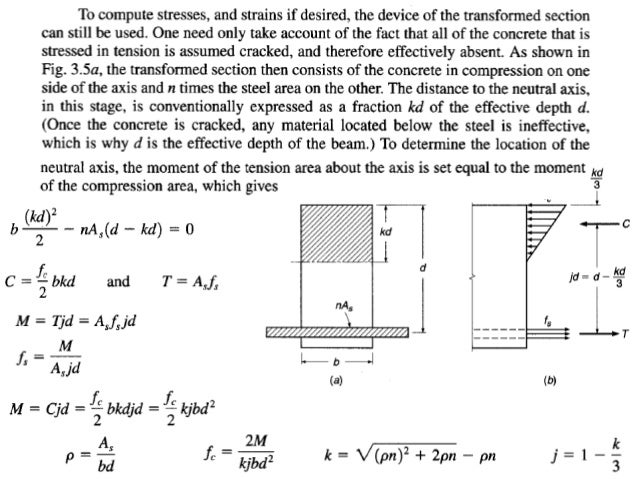

Lecture On Ch 3 Flexural Analysis And Design Of Beams If a beam cross section is limited because of architectural or other considerations, it may happen that the concrete cannot develop the compression force required to resist the given bending moment. Chapter 3 design of beam for flexure and shear free download as pdf file (.pdf), text file (.txt) or read online for free. this document discusses limit state design of reinforced concrete beams. Method of rcc design a reinforced concrete structure should be designed to satisfy the following criteria i) adequate safety, in items stiffness and durability iii) reasonable economy. the following design methods are used for the design of rcc structures. Solution: given: clear span = 6 m, wall thickness = 250 mm, live load = 9.8 kn m fck= 20 mpa, fy = 415 mpa the minimum depth of beam is based on limit state of serviceability requirements.
