Solved 2 12 The Two Forces Shown In Fig P2 12 Find The Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. there’s just one step to solve this. not the question you’re looking for? post any question and get expert help quickly. Figure 2: the parallelogram method for computing the resultant force. to apply this method, you need a ruler measuring the distance and a protractor measuring the angle, or you can perform this task on a computer by using vector drawing software.
Solved Problem 7 Find The Resultant Of The Two Forces Shown Chegg The document contains various problems and solutions on the composition and resolution of forces using the parallelogram and triangle laws. it covers multiple cases with detailed examples and computations, including resultant forces and angles. Force f₁ = 400 n at 30° above the negative x axis (or 150° from the positive x axis) force f₂ = 100 n at 40° above the positive x axis show more…. Find resultant of the two forces shown in fig. 2.6.2 using parallelogram law. solution: let p= 100 n and q = 200 n then a = 80°. complete the parallelogram by drawing lines parallel to the given forces. the diagonal drawn from the common point represents their resultant which makes angle θ with p. refer fig. 2.6.2 (a). example 2.6.2. Find the resultant of the force and couple moment system acting on the beam shown in figure, and find where its line of action intersects the beam, measured from point o.
Solved 2 The Resultant Of The Forces Shown In Fig Q2 Is Chegg Find resultant of the two forces shown in fig. 2.6.2 using parallelogram law. solution: let p= 100 n and q = 200 n then a = 80°. complete the parallelogram by drawing lines parallel to the given forces. the diagonal drawn from the common point represents their resultant which makes angle θ with p. refer fig. 2.6.2 (a). example 2.6.2. Find the resultant of the force and couple moment system acting on the beam shown in figure, and find where its line of action intersects the beam, measured from point o. Calculate the resultant force acting on an object or body through this resultant force calculator with angle. this online tool can quickly figure out the overall value for many forces that act on a body simultaneously. To determine the resultant force on the lever, first express the given forces f 1 and f 2 in their vector components using their magnitudes and angles. for f 1 = 20 lb, use the angle 20 ∘. To find the magnitude of the resultant force when two forces are acting on an object, we need to use vector addition, specifically the pythagorean theorem if the forces are at right angles to each other. Given the forces f1 = 2.91 n, f2 = 2.67 n, f3 = 2.47 n and f4 = 2.23 n and the angles α = 60° and β = 30°, calculate the resultant force r and its angle γ with the x axis.

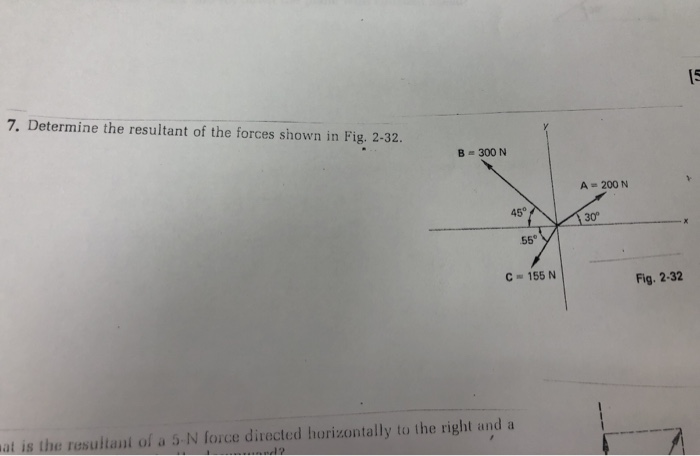

Solved 7 Determine The Resultant Of The Forces Shown In Chegg Calculate the resultant force acting on an object or body through this resultant force calculator with angle. this online tool can quickly figure out the overall value for many forces that act on a body simultaneously. To determine the resultant force on the lever, first express the given forces f 1 and f 2 in their vector components using their magnitudes and angles. for f 1 = 20 lb, use the angle 20 ∘. To find the magnitude of the resultant force when two forces are acting on an object, we need to use vector addition, specifically the pythagorean theorem if the forces are at right angles to each other. Given the forces f1 = 2.91 n, f2 = 2.67 n, f3 = 2.47 n and f4 = 2.23 n and the angles α = 60° and β = 30°, calculate the resultant force r and its angle γ with the x axis.
