Solved Problem 5 Two Forces As Shown In The Figure Below Chegg Here’s the best way to solve it. problem 5: two forces, as shown in the figure below, are dragging two blocks connected by a rope of negligible mass. Problem 5: 1) is there a 2 force element in the figure shown below? 2) determine the reaction forces at a and at c. (must have a fbd to get credit) 600 n m 900 n·m b d 1 m 1 m 1 m С not the question you’re looking for? post any question and get expert help quickly.
Solved The Two Forces And 2 Shown In The Figure Figure 1 Chegg The truss shown below is supported by a pin support at a and a roller support at b. use the hybrid method of sections and joints to determine the forces in members ce, cf, and cd. Determine the magnitudes of f1 and f2. this will result in a system of equations when solving for f1 and f2 magnitudes (two equations and two unknowns). you can use the elimination or substitution method in algebra to solve the system. The law of cosines states that for a triangle with sides a, b, and c, and angle c opposite side c, we have: c^2 = a^2 b^2 2ab*cos (c) in our case, the triangle is formed by f1, f2, and r, and angle c is angle a. The document contains various problems and solutions on the composition and resolution of forces using the parallelogram and triangle laws. it covers multiple cases with detailed examples and computations, including resultant forces and angles.
Solved Correct The Two Forces And F Shown In The Figure Chegg The law of cosines states that for a triangle with sides a, b, and c, and angle c opposite side c, we have: c^2 = a^2 b^2 2ab*cos (c) in our case, the triangle is formed by f1, f2, and r, and angle c is angle a. The document contains various problems and solutions on the composition and resolution of forces using the parallelogram and triangle laws. it covers multiple cases with detailed examples and computations, including resultant forces and angles. Our expert help has broken down your problem into an easy to learn solution you can count on. question: two forces are applied to a bracket as shown in figure below. calculate a. Two forces, a horizontal force of 45 $\mathrm {lb}$ and another of 52 lb, act on the same object. the angle between these forces is $25^ {\circ} .$ find the magnitude and direction angle from the positive $x$ axis of the resultant force that acts on the object. To find the x component of the resultant force f x, you'll need to subtract the x components of f 1 and f 2, each calculated by using their respective magnitudes and angles with the x axis in their relevant quadrants. Engineering mechanics – assignments – mech 1002 dr piyush gaur upes f assigiment 1 – unit 1 max marks: 100 instructions solve all the problems and give steps for each problem. 1. the resultant of two forces, one of which is double the other is 260 n. if the direction of the larger force is reversed and the other remains unaltered, the resultant reduces to 180 n. determine the magnitude.
Solved The Two Forces And Shown In The Figure Figure 1 Chegg Our expert help has broken down your problem into an easy to learn solution you can count on. question: two forces are applied to a bracket as shown in figure below. calculate a. Two forces, a horizontal force of 45 $\mathrm {lb}$ and another of 52 lb, act on the same object. the angle between these forces is $25^ {\circ} .$ find the magnitude and direction angle from the positive $x$ axis of the resultant force that acts on the object. To find the x component of the resultant force f x, you'll need to subtract the x components of f 1 and f 2, each calculated by using their respective magnitudes and angles with the x axis in their relevant quadrants. Engineering mechanics – assignments – mech 1002 dr piyush gaur upes f assigiment 1 – unit 1 max marks: 100 instructions solve all the problems and give steps for each problem. 1. the resultant of two forces, one of which is double the other is 260 n. if the direction of the larger force is reversed and the other remains unaltered, the resultant reduces to 180 n. determine the magnitude.
The Two Forces And Shown In The Figure Figure 1 Chegg To find the x component of the resultant force f x, you'll need to subtract the x components of f 1 and f 2, each calculated by using their respective magnitudes and angles with the x axis in their relevant quadrants. Engineering mechanics – assignments – mech 1002 dr piyush gaur upes f assigiment 1 – unit 1 max marks: 100 instructions solve all the problems and give steps for each problem. 1. the resultant of two forces, one of which is double the other is 260 n. if the direction of the larger force is reversed and the other remains unaltered, the resultant reduces to 180 n. determine the magnitude.

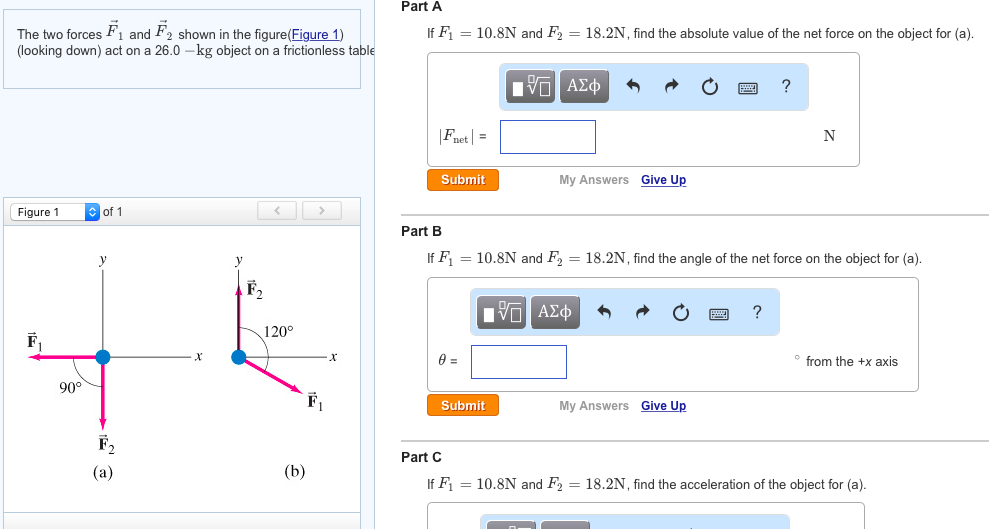

Solved Part A Problem 1 A For The Forces Shown In The Figure
